Product Category

HB-105A Automatic Strapping Machine

Power: 3100W
Supply voltage: 380V 50/60Hz
Air pressure: 0.4-0.6Mpa
Frame size: W1500*H1500mm (customizable)
Machine dimension: L1930*W3240*H2800mm
Packing speed: ≤15 sec/cycle
PP strap: Width 9-15(±1)mm Thickness 0.55-1.0(±0.1)mm
PP strap spool width: 160-180mm
PP strap spool inner dia: 200-210mm
PP strap spool outer dia: 400-500mm

HB-103A Automatic Strapping Machine

Power: 1000W
Supply voltage: 380V 50/60Hz
Minimum Packing size: W100*H80mm
Standard frame size: W600*H800mm (customizable)
Working table height: customizable
PP strap: Width 9-15(±1)mm Thickness 0.55-1.0(±0.1)mm
Packing speed: ≤2.5 sec/cycle
Machine dimension: L1810*W628*H1617mm

HB-305BP Automatic Strapping Machine (Tabletop Belt+Pressurization)

Power supply: 220V 50/60Hz 1.0KW
Minimum packing size: W150*H60mm
Standard frame size: W650*H500mm (customizable)
Working table height: 850mm (customizable)
Packing speed: ≤30 cycles/min
Strap width: 5mm / 6mm
Strap thickness: 0.5-0.8mm
Machine size: L1480*W730*H1980mm

HB-305RP Automatic Strapping Machine (Tabletop Rollers+Pressurization)

Power supply: 220V 50/60Hz 1.0KW
Minimum packing size: W200*H60mm
Standard frame size: W1250*H500mm (customizable)
Working table height: 850mm (customizable)
Packing speed: ≤25 cycles/min
Strap width: 5mm / 6mm
Strap thickness: 0.5-0.8mm
Machine size: L1520*W680*H2000mm

HB-DBA200 Strapping Machine

Power supply: 220V 50/60Hz 400W
Tension Force: Up to 80kg
Speed: 2.5-3 sec/cycle
Strap size: Width 9-15mm Thickness 0.5-1.0mm
Max. Carton size: W800*H600mm
Machine size: L1440*W628*H1435mm
Gross weight: 170kg
Machine Weight: 150kg

HB-1880 Strapping Machine

Power:3ph, 380V 50/60Hz 1ph, 100-240V, 50/60Hz
Polypropylene width: 9, 10, 12, 16mm
Speed: 2.3 sec/cycle
Tension: 5-80kg
Table Height: 450mm
Arch size: W 550-2850mm H 250-1800mm
Machine size: 1880*600*1200mm
Weight:Net. 280kgs (shipping weight: 350kgs)

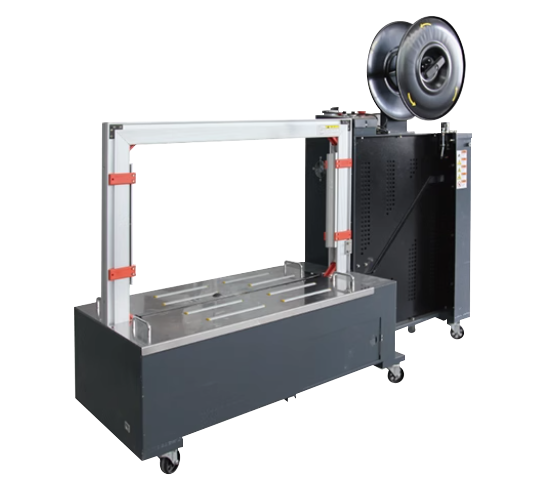

HB-X201B Strapping Machine

Power supply: 220V 50/60Hz 0.4KW
Minimum packing size: W80*H60mm
Standard frame size: W800*H600mm (customizable)
Working table height: 450mm (customizable)
Packing speed: ≤2.5 sec/cycle
Package size: W 9/12/15mm T 0.6-0.85mm
Machine size: L1810*W628*H1617mm

HB-101A Strapping Machine

Power supply : 380V 50/60Hz 1.0 KW
Minimum packing size : W100*H80mm
Standard frame size : W800*H600mm (customizable)
Packing speed: ≤2.5 sec/cycle
Package size: W 9/12/15mm T 0 .6-0.85mm
Machine size: L1400*W640*H1450mm

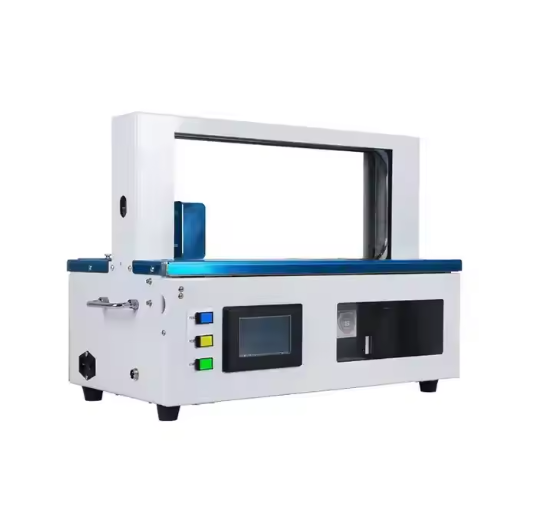

HB-SM210-30(20) Automatic Strapping Machine

Supply voltage: 220V 50Hz 80W
The thickness of tape: 0.12mm
Length of band roll: 150m
Outer diameter of banding roll: 160mm
Biggest banding size of object: W470*H200mm
Smallest banding size of object: W30*H10mm
Roll core diameter: 40mm
Outer/Inner diameter of band roll: 155mm/40mm
Single banding time: less than 2.5 second
Banding tension: 5-50N(adjustable)
Banding sealing way: Heat sealing
Outer measurement of machine: 596*364*504mm
Size of plywood case: 680*400*630mm
Weight: N.W 35KGS G.W 55KGS

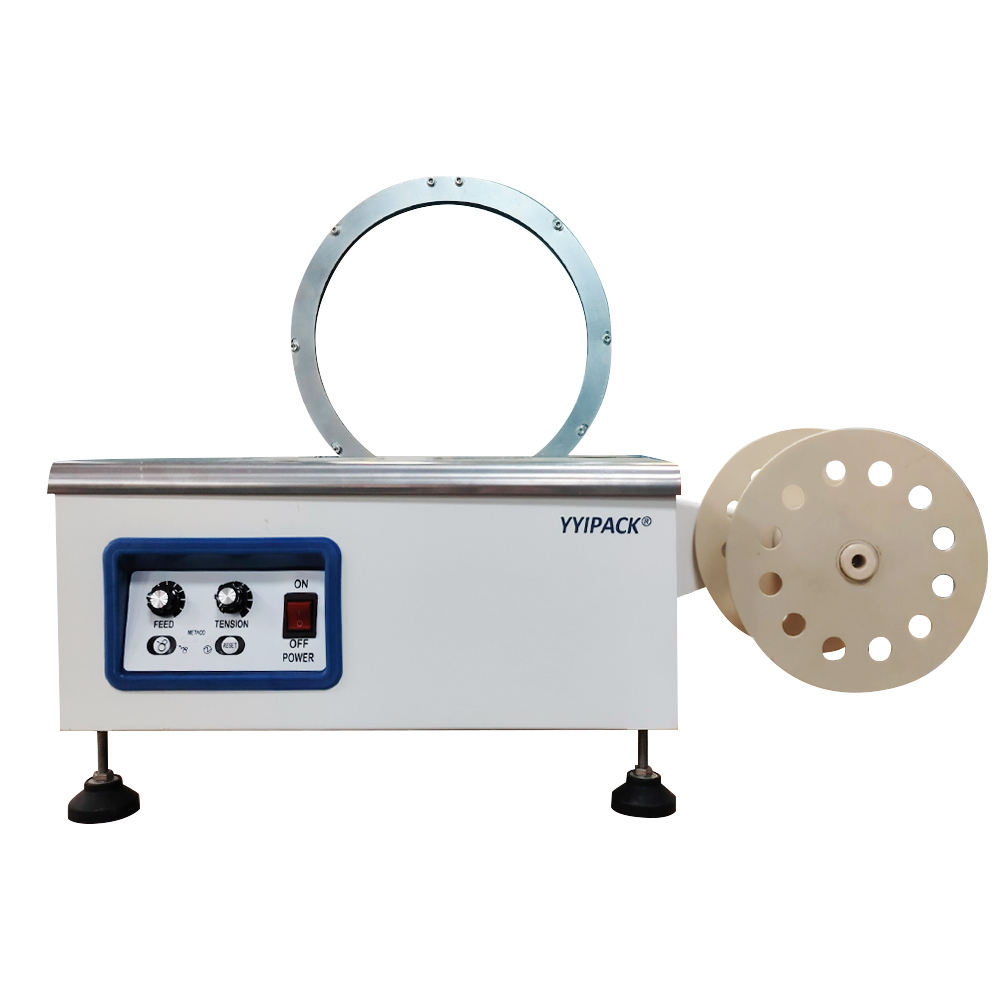

HB-SM730 Ring-like Desktop Strapping Machine

Power voltage : 220V/60Hz 400W
Adhesion method ：Thermal melting method
The tight way : Concentration way
PP belt width : 5-15 mm
Belt plate: outer diameter - 22cm / inner diameter - 7cm
Ring size : 240*220mm (customise)
Weight : 28kg
Product size : 470*440*270mm

<1 2 3 4 5 >
