Product Category

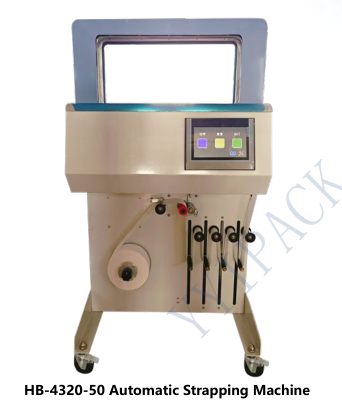

HB-4320-50 Strapping Machine

Arch Size: W430*H200mm
Power Consumption: 0.4KW, 2.5A
Overall Dimensions: L690*W900*H1150mm
Net Weight: 80kg
Strap Material: Paper strap, OPP film strap (option)
Gross Weight: 90kg
Strap Width: 50mm
Core Inner Diameter: 40mm
Strapping Cycle Time: ≤3 seconds per cycle
Outer Diameter: <160mm
Tension Range: 5-40N
Reel Width: 50mm
Package Size: Minimum Width: 50mm
Strap Thickness: 0.12mm
Power Supply: AC110-120V/220-240V,50/60Hz,Single Phase
Strap Length per Roll: 300 meters

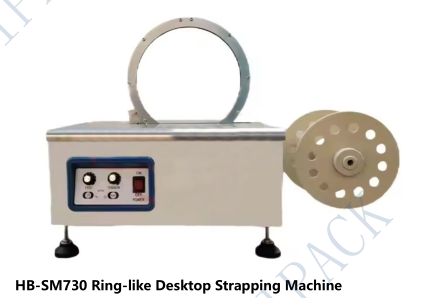

HB-SM730 Ring-like Desktop Strapping Machine

Power voltage: 220V 50/60Hz 400W
Belt plate: outer diameter:22cm
inner diameter:7cm
Adhesion method: Thermal melting method
Ring size: 240220mm(customise)
The tight way: Concentration way
Weight: 28kg
PP belt width: 5-15mm
Product size: 470*440*270mm

HB-CH3 Ring-like Strapping Machine

Power: 350W
Power supply: 220V/50Hz
Strapping speed: 1.5M/S
Strap width: 8-15mm
Strap thickness: 0.5-0.9mm
Outline size: 770*540*970mm
Ring size: 240*210mm、280*210mm、250*230mm、400*400mm
Weight: 60kg

HB-SM210-30(20) Automatic Strapping Machine

Supply voltage: 220V 50Hz 80W
Outer/Inner diameter of band roll: 155mm/40mm
The thickness of tape: 0.12mm
Single banding time: less than 2.5 second
Length of band roll: 150m
Banding tension: 5-50N(adjustable)
Outer diameter of banding roll: 160mm
Banding sealing way: Heat sealing
Biggest banding size of object: W470*H200mm
Outer measurement of machine: 596*364*504mm
Smallest banding size of object: W30*H10mm
Size of plywood case: 680*400*630mm
Roll core diameter: 40mm
Weight: N.W 35KGS G.W 55KGS

HB-DBA200 Automatic Strapping Machine

Tension Force: Up to 80kg
Power: 400W
Strapping speed: 2.5-3 seconds/cycle
Machine size: L1400*W628*H1435mm
Width of pp strapping: 9-15mm
Max Carton size: W800*H600mm
Thickness of pp strap: 0.5-1.0mm
Weight: 150KG
Voltage: 220V 50Hz
Gross weight: 170KG

HB-101B Automatic Strapping Machine

Supply voltage: 220V/380V 50-60Hz 1.0kw
Binding speed: ≤2.5 sec/cycle
Frame size: W800*H600mm
Width: 9/12/15mm
Table height: 450mm
Thickness: 0.6-0.85mm
Strap size: W100-720 H50-500mmL(wireless)
Machine size: L1850*W600*H1520mm
Binding force: 0-60kg(adjustable)
Machine weight: 270kg
Carrying weight: 80kg

HB-305 Automatic Strapping Machine

Power: 600W
Working table height: 850mm(Customized)
Supply voltage: 220V 50/60Hz
Packing speed: ≤50cycles/min
Machine dimension: L1180*W585*H1450mm
Strap width: 5/6mm
Minimum packing size: W80*H60mm
Strap thickness: 0.5-0.8mm
Standard frame size: W650*H500mm(Customized)
Strap inner dia: 200-210mm

HB-101A Automatic Strapping Machine

Supply voltage: 220V/380V 50-60Hz 1.0kW
Binding speed: ≤2.5 sec/cycle
Frame size: W800 H600mm
Width: 9/12/15mm
Table height: 750mm
Thickness: 0.6-0.85mm
Strap size: W100-720 H50-500mm(wireless)
Machine size: L1400*W640*H1450mm
Binding force: 0-60kg(adjustable)
Machine weight: 240kg
Carrying weight: 80kg
